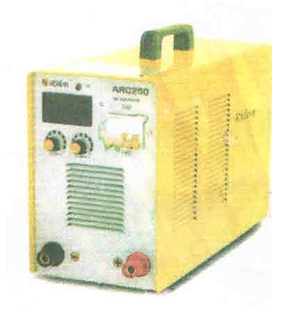

ARC 250 Inverter Welding Rectifiers
ARC-250-Inverter-Welding-Rectifiers1

ARC 250 Inverter Welding Rectifiers Salient Features
* Light Weight
* Low Power Consumption
* Excellent reliability with high performance, suitable for outdoor onsite use.
* Immunity from AC inpur fluctuation of ±15 % with built-in overload protection.
* In-built hot start facility ensures easy arc striking.
* Ideal for Tig welding with suitable accessories.
* Remote control facility.

Special Features
* Ideal for project site jobs, Light weight and small dimension makes easy for Transportation
   and Loading Unloading
* Class "F" insulation

TECHNICAL SPECIFICATION.     ARC 250
Input
Supply Voltage 440V ±15% 3Phs 50/60Hz AC
Rated Input 15A
Output
Output Range 20-250 Amps. DC
Maximum Current 250 Amps.
Duty Cycle @ 60% 30V/250A
Duty Cycle @ 100% 28V/200A
Open Circuit Voltage 58V
Protection Class IP21
Insulation Class F
Cooling Type Fan Cooled
Efficiency 0.85
Dimention(MM) 480*204*303
Net Weight 18 Kg
Arcing Way 4.2 MM
