Water Cooled Kickless Cable

Kickless Cable Assembly Process Alternate Polarity Separated by Separator Hose Crimping for Kickless Cable Resistance Checking of the Kickless Cable
Kickless Cable Assembly
Process		 Alternate Polarity Separated
by Separator		 Hose Crimping for

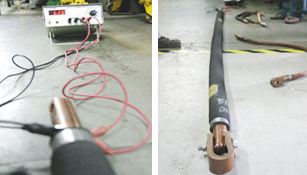

Kickless Cable		 Resistance Checking of the
Kickless Cable


Features and Specification of our better quality kickless cables :
1. Design of Kickless Cable as per Customers Specification & Requirement and drawings.
2. High flexibility for good working efficiency.
3. Special type of Rubber hose with the good flexibility and its Pressure Capacity more than 10 Kg/cm2 and protect to high temperature water for safe operation. Covering of good pressure resistance, heat resistance, wear resistances.
4. Excellent cooling effect even in continued welding operation.
5. Fantastic water testing units with Pressure 10 to 12 Kg/cm2, Each & every cable is tested.
6. Little Impedance & little Reactance drop.
7. Copper wire size is 33 Gauge for 300 MCM & 400 MCM as per Standard of RWMA
8. Accurate copper straight lug or copper bend lug with 100% Conductivity of copper.
9. High resistance of repeating kicks & bending caused by electro magnetic force introduced by the welding current & welding operation, according long life.
10. Good Quality product with Long Life and reasonable rate. Long cable life reduces cable cost per weld – the true measure of cost cable.
11 Easy for check & replacement & maintenance.
12 The kickless cable is consuming part required to be inexpensive.
13 Expertise staffs’ are working in Electromech Corporation, last 15 Years experience in same field.
14 Immediately service is our motto.

Maximum current available with different cable on different Transformer :
CABLE SELECTION CHART-MCM

Technical data – Dual – Conductor Cable

Based on 2g.p.m. @ 100o  F temperature rise, maximum temperature 167o F. OHM’s per foot cable – both lead.
  300 MCM 400 MCM 500 MCM 600 MCM 650 MCM 800 MCM
Resistance ® per foot 0.0000836 0.0000625 0.0000502 0.0000422 0.0000388 0.0000312
Impedance
(z) per foot		 0.0000935 0.0000855 0.0000650 0.0000581 0.0000524 0.0000470


  Amperes continuous duty current
Duty Multiplier LEANTH
Cycle   MCM 300 400 500 600 650 800
100% 1.00 3ft 10720 12400 13700 15200 15800 17620
90% 0.95 4ft 9300 10890 12000 13100 13550 15220
80% 0.90 5ft 8350 9700 11400 11570 12200 13420
70% 0.84 6ft 7660 8800 9800 10800 11100 12480
60% 0.78 7ft 7060 8100 9100 9900 10300 11550
50% 0.71 8ft 6600 7700 8500 9100 9680 10720
40% 0.63 9ft 6210 7100 8000 8700 9160 10400
30% 0.55 10ft 5900 6800 7640 8300 8650 9650
20% 0.45 11ft 5560 6500 7250 7920 8250 9100
10% 0.32 12ft 5350 6200 6950 7620 7920 8700
5% 0.22 13ft 5160 6200 6650 7300 7600 8400
3% 0.17 14ft 5000 5570 6420 7000 7300 8130
2% 0.14 15ft 4800 5400 6200 6800 7100 7780
    16ft 4650 5150 6000 6560 6820 7620
    17ft 4500 5050 5850 6360 6640 7400
    18ft 4420 5050 5670 6100 6460 7100
    19ft 4300 4950 5540 6000 6270 7000
    20ft 4200 4850 5380 5840 6110 6820

EMC : Eletromech kickless cable
First numeral : Normal sectional area of conductor.
Second numeral : Length of cable
• a) With a sub-cable 150 mm2 × 650 mm long + 1200 mm electrical Throat Depth × 200 mm Throat Gap gun + kickless cable.
•  Tip to tip current is given.

Unique Technical Features :
11 extra operations on each end of Electromech Kickless Cable

These operations are necessary where wires are again crimped in an exclusive male and female pattern to position the wires to achieve the best alternate polarity design. This ultimately, results into less Kicks in Kickless Cable without any shorting of inside wires while in weld operation and hence increases the life by two to three times as per the feed back received form the industry sources.
Operation 1 & 2 : Copper strip using for Wire crimping in Hydraulic press & then soldering on both end lugs.
Operation 3 & 4 : Blanking of Non magnetic S.S. sheets - 2 times (One Male & One Female).
Operation 5 & 6 : Forming of straight Pipe (male) and taper Pipe (female)
Operation 7 & 8 : Spot Welding straight pipe (male) and taper Pipe (female)
Operation 9 & 2 : Crimping into male type and other into female type.
Operation 11 : Covering the male pipe with high quality imported heat shrink sleeve.

Kickless Cable (300 MCM) Technical Parameter Chart
Specification Length 150 mm2 (300 mcm) Remark
Impedance At 25OC 50 Hz
2.0 mtr
2.4 mtr
515 +/- 15 Micro Ohms)
(600 +/- 15 Micro Ohms )

D.C Resistance At 25OC
2.0 mtr
2.4 mtr
(490 Micro Ohms)
(590 Micro Ohms)

Reactance
2.0 mtr
2.4 mtr
(85 Micro Ohms)
(90 Micro Ohms)

Power Factor
2.0 mtr
2.4 mtr
(0.96)
(0.96)

Coolant Flow Rate
2.0 mtr
2.4 mtr
More Than 7 Liters / min
More Than 7 Liters / min
Pressure Loss
0.5 kg / cm2
Temp Rise of Coolant
2.0 mtr
2.4 mtr
40-44o C at 5600 A
40-44o C at 5600 A
At Coolant Flow Rate of 7 Liters / Min
Weight
2.0 mtr
2.4 mtr
10.150 Kg.
12.300 Kg.


Special type flexible Rubber Hose and Star separator is non conductive heat & oil resistance and hardness 50 to 60 degree Shore A. Over all finished Cable flexibility checked by the coiling around wooden former.

Kickless Cable (400 MCM) Technical Parameter Chart
Specification Length 200 mm2 Remark
Impedance At 25OC 50 Hz
2.0 mtr
2.4 mtr
(360 +/- 20 Micro Ohms)
(455 +/- 20 Micro Ohms )

D.C Resistance At 25OC
2.0 mtr
2.4 mtr
(350 Micro Ohms)
(440 Micro Ohms)

Reactance
2.0 mtr
2.4 mtr
(85 Micro Ohms)
(95 Micro Ohms)

Power Factor
2.0 mtr
2.4 mtr
(0.97)
(0.97)

Coolant Flow Rate
2.0 mtr
2.4 mtr
More Than 7 Liters / min
More Than 7 Liters / min
Pressure Loss
0.5 kg / cm2
Temp Rise
2.0 mtr
2.4 mtr
40-44o C at 6500 A
40-44o C at 5900 A
At Coolant Flow Rate of 7 Liters / Min
Weight
2.0 mtr
2.5 mtr
12.300 Kg.
15.900 Kg.


Flexibility of Rubber Hose and Star separator is 48 to 50 Sour A. Over all finished Cable flexibility checked by the coiling around wooden former.
