Spot / Projection Welding Machines |
| ( An ISO 9001:2008 Certified Company ) |
| |

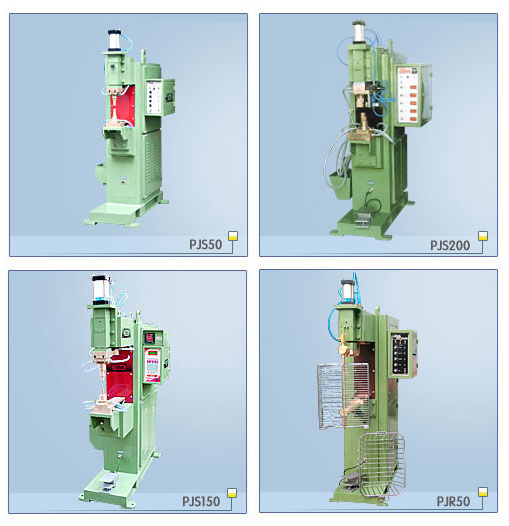

| ASMITA ENGINEERING MAKE PNEUMATICALLY OPERATED SPOT / PROJECTION WELDING MACHINE |
| |
|
| |
 |
MODEL : 15-10 SERIES
CAPACITY : 50 to 250 KV A
Press type air operated Spot Welders are designed for extraordinary versatility and are available with different styles of welding head arrangements. A variety of electrodes and toolings can be fitted to render them suitable for spot welding, simple projection welding, electrobrazing, hot riveting, electro forging and upsetting. Fully solid state Electronic Controls are available for use with machine in order to obtain consistent and accurate weld results on a wide range of metals at a high speed automatic operation. |
| |
Description :
| MODEL |
: |
26-20 series |
| CAPACITY |
: |
75 to 600 KVA at 50% Duty Cycle. |
| THROAT DEPTH |
: |
300 to 600 MM |
Press type air-operated Projection Welders are designed for high speed production work to meet the needs of vast numbers of metal fabrication shops. A variety of electordes and toolings can be fitted to render them suitable for a variety of projection welding application. |
|
| |
TECHNICAL DATA :
| Machine Model |
26-21 |
26-22 |
26-23 |
26-24 |
26-25 |
26-26 |
26-27 |
26-28 |
| Rating KVA @ 50% Duty Cycle |
75 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
| Max.Short circuit current K.Amps.: |
40 |
50 |
70 |
80 |
100 |
125 |
140 |
160 |
| Electrode Force: |
Depending upon the application |
|
| |
 |
| |
| |
