One End Heating Machines

( An ISO 9001:2008 Certified Company )

One End Heating Machines
AUTOMATIC ONE END FILE HEATING MACHINE

We are a team of qualified and experienced Engineers and Technicians. We are pleased to inform you that we have successfully come out with a unique – FIRST TIME IN INDIA – special purpose Resistance Heating Machine which is very useful for Engineers’ File manufacturers. This machine is used in place of existing Gas Burners for heating the file ends before forging. The special design used in this machine helps to heat the job faster with considerable less current. Since the Time and Current is less, the electrical energy consumption, which is proportional to the time and square of current, is considerably reduced and hence the operation cost of this machine is negligible compared to gas heating. Apart from the financial benefits, this machine is absolutely Eco friendly compared to gas heating.

We have successfully established this heating system with three of the following leading file manufacturers in India.
* M/s HURRY NOTH AND CO. PVT. LTD
* M/s UNIQUE STAR ALLIANCE PVT
* M/s INDIAN FILLES MANUFACTURING COMPANY LTD (GARDEX GROUP)

All of the above parties have removed the gas burners and have installed our heating machines in their forging plant. They are more than satisfied with the machine performance and the financial gain achieved after switching over to our heating machines.

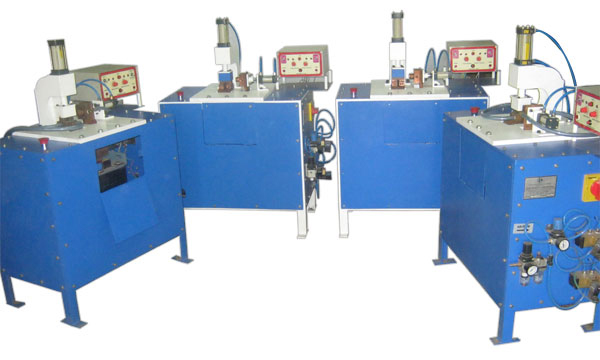

One End Heating Machines
This one end heating technology can be used for any type of end terminal heating purpose and application.

SALIENT FEATURES
*
Low Power Consumption
*
Fully Automatic
*
Thyristorised Electronic Precision control ensures accuracy
*
Absolutely eco-friendly compared to conventional gas heating
*
Precise localized heating pattern ensures superior product quality

TECHNICAL SPECIFICATIONS

TRANSFORMER

:
KVA : 15 KVA to 30 KVA
COOLING : WATER
INSULATION : CLASS-F
POWER SUPPLY : 415 V – 1 Ph

MACHINE
OVERALL DIMENSIONS (mm) : 400W X 650DX800H
WEIGHT (kg) :

150


For 10 mm File
Heating Length : 25 mm
Time taken to attain forging temp : 5 Sec
Units consumed for 100Doz files : 5 (Approx)

SIZE OF TRIANGULAR FILE ELECTRIC UNITS CONSUMED
6 mm 1.5
8 mm 2
10 mm 4
12 mm 6
16 mm 12
19 mm 20

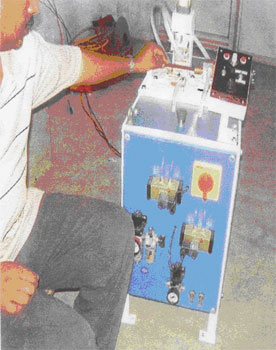

File Heating Machines
File Heating Machines
